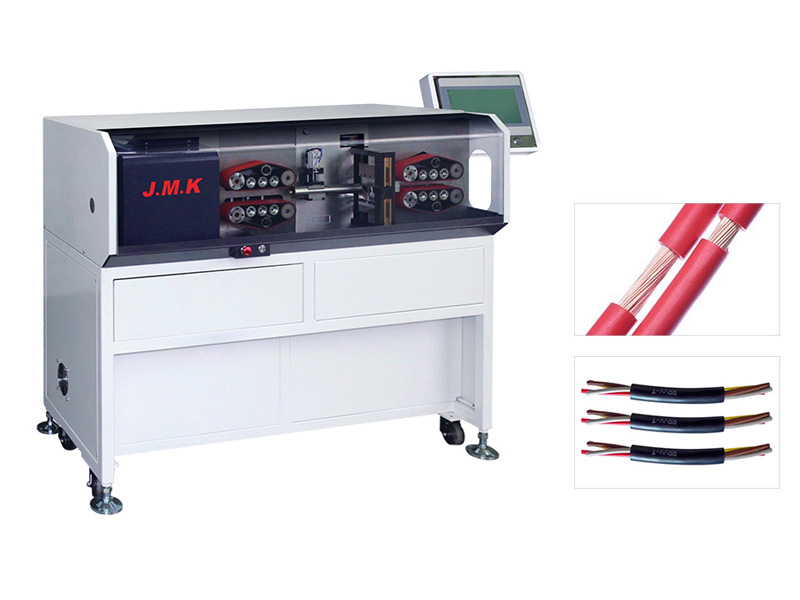

JM-70 Large Square Cutting and Stripping Machine
High Voltage Harness Machine >JM-70 is a new energy large-square wire harness processing equipment with microcomputer control, mainly for the processing of high-voltage power cables used in new energy, energy storage,

JM-70 is a new energy large-square wire harness processing equipment with microcomputer control, mainly for the processing of high-voltage power cables used in new energy, energy storage, electric power, battery packs, charging piles and charging guns, and electric control. It is suitable for cutting and stripping cables with different wire diameters and multi-layer cables.



Technical Parameters:


Model JM-70
Wire range 6~200mm2
Pipe diameter
6~25mm
Stripping length  Front 400mm/Rear 250mm (Max. peeling length)
Cutting accuracy  0.1%L +1
Stripping layers  9 layers
Stripping method
Cutting/peeling knife
Efficiency Approx. 300~700Pcs/H
Power/Air  220V 50/60Hz, 0.5-0.8Mpa
Size/Weight
W1500×D700×H1450mm,Approx. 300kg
